Waltz Tail Skid Plate

Photo: Waltz Skateboarding
Internet Links
Links
Overview
Make	Waltz Skateboarding
Model	Tail Skid Plate
Specs
Width	5.25" (13.3 mm)
Length	1.5" (3.8 cm)
Thickness	0.25" (6.4 cm)
Hole Distance	2.0" (50 mm)
Edge Shape	Round
Colors	White
Release Date	April 20 2018
Introductory Price	$16.00 per set
Retail Availability	2018
Hardware Included	Yes
Nose Compatibility	Waltz "The Fuel" Deck Waltz "The Pilot" Deck Waltz "The Prophets" Deck
Tail Compatibility	Waltz "The Fuel" Deck Waltz "The Pilot" Deck Waltz "The Prophets" Deck
Skated by	Mike Osterman, Daniel Trujillo

The low profile Waltz Nose Skid Plate and Waltz Tail Skid Plate are sold as a set and perfectly fit the nose and tail of the Waltz "The Fuel" Deck and Waltz "The Pilot" Deck. Comes with all necessary hardware.

Gallery

•

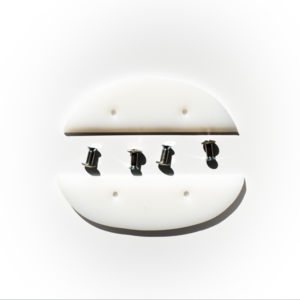

  Nose (Top) and Tail (Bottom)

•

  Shape comparison with Nose skid stacked on top of the Tail skid

Hardware

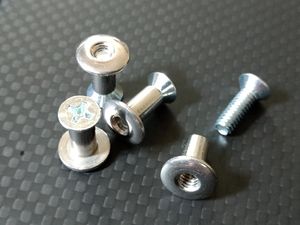

Included Sex Bolts

Dimensions
T-Nut Length	0.436" (11mm)
T-Nut Width	0.195" (5mm)
Screw Length	0.5" (12.72mm)
Screw Width	0.16" (4mm)

• Use a 3/16" or 5mm drill bit for these T-Nuts.
